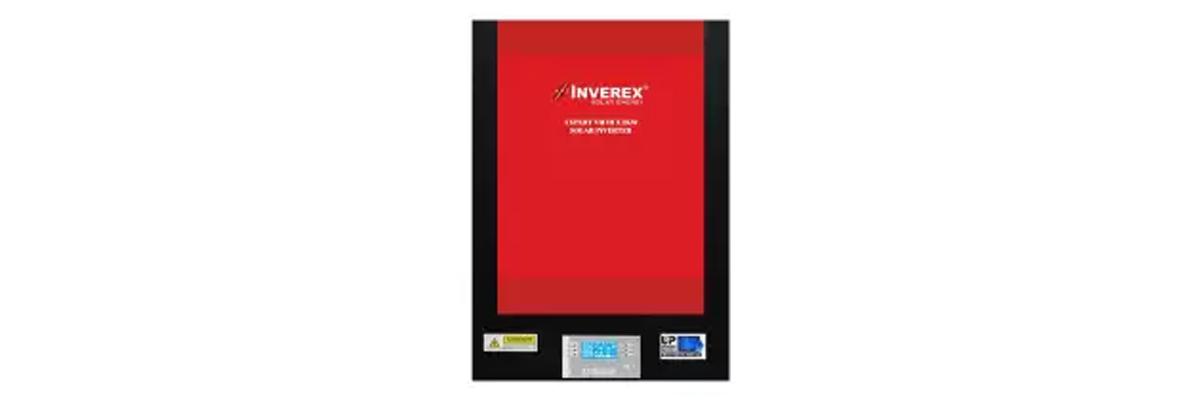

badgeInverex -INV004 Axpert VM III (Hybrid) Solar Inverter - 3.2 KW

Rs. 58,860
Installment

Up to 12 months, as low as Rs. 4,905 per month.

Quantity
Delivery Options
Sindh, Karachi - Gulshan-e-Iqbal, Block 15
Home Delivery
2 - 5 days
Rs. 339
Cash on Delivery Available
Return & Warranty
100% Authentic
14 days easy return
Change of mind is not applicable
1 Year Brand Warranty
Positive Seller Ratings
80%
Ship on Time
94%
Seller Size

Product details of Inverex -INV004 Axpert VM III (Hybrid) Solar Inverter - 3.2 KW

  • Brand Warranty
  • 3rd Generation smart and intelligent solar inverter
  • Removable LCD control module with various communications
  • Integrated Bluetooth interface with an android app ( Watch power )
  • MPPT based solar charge controller
  • Compatible with (Li Ion, LiFePo4 and etc) batteries with BMS
  • Battery equalization
  • Easy replacementfans
  • Data logging and storage function
  • Energy prioritization according to the timer
  • Eco-friendly
  • Smart and Effective

Description:

Inverex Axpert VM solar inverter 3.2 kW MPPT solar charge controller with battery equalization. 2nd Generation smart and intelligent solar inverter. It has output power factor 1, compatible with generator and SNMP card. It has a feature of easy replacement of fans, compatible with main voltage or generator power.


INPUT

  • Voltage 230 VAC
  • Selected Voltage Range 170-280 VAC (For Personal Computer) 90-280 (For For Home Appliances)
  • Frequency Range 50 Hz/ 60 Hz (Auto Sensing)

OUTPUT

  • AC Voltage Regulation (Batt. Mode) 230 VAC± 5%
  • Surge Power 6400 VA
  • Efficiency (Peak) 90% ~ 93%
  • Transfer Time 15 ms (For Personal Computer) 20 ms (For For Home Appliances)
  • Wave Form Pure sine wave

BATTERY

  • Battery Voltage 24VCD
  • Floating Charge Voltage 27VCD
  • Overcharge Protection 31 VDC

SOLAR CHARGER & AC CHARGER

  • Solar Charger Type MPPT
  • Maximum PV Arry Open Circuit Voltage 500 VDC
  • Maximum PV Arry Power 4000W
  • MPR Range @ Operation Voltage 120 ~ 450 VDC
  • Max Current @ 450 : 9AMP
  • Maximum Solar Charge Current 80 A
  • Maximum AC Charger Current 60 A

PHYSICAL

  • Dimension, D X W X H (mm) 115 ×300× 400
  • Net Weight (Kgs) 11
  • Communication Interface RemovableUSB/RS232/Bluetooth/Dry-contact

OPERATING ENVIRONMENT

  • Humidity 5% to 95% Relative Humidity (Non-condensing)
  • Operating Temperature -10° C to 50° C
  • Storage temperature -15° C to 60° C

Specifications of Inverex -INV004 Axpert VM III (Hybrid) Solar Inverter - 3.2 KW

  • Brand
    Inverex
  • SKU
    IN642HL03MD48NAFAMZ-4082376
  • Model
    Axpert VM III 3.2 KW
  • Warranty Policy EN
    1 Year
What’s in the box
1x Inverter, 1x Manuals

Ratings & Reviews of Inverex -INV004 Axpert VM III (Hybrid) Solar Inverter - 3.2 KW

5.0/5
2 Ratings
  • 2
  • 0
  • 0
  • 0
  • 0

This product has not received a written review yet.

Let others know what do you think and be the first to write a review.

Questions about this product (69)
Other questions answered by Inverex Solar Energy (Karachi) (69)
  • 4000 watt pore ho to ye inverter run karega ya km ho mare pas 7 plates ha 300watts aur mane sirf 1 frig 2fane chalane ha din ko
    Shakir U. - 21 hours ago
    Basically is inverter ko run krny k lye ap ko 4000 PV required hoti hai ap apny load ko increase kr len is inverter k according
    Inverex Solar Energy (Karachi) - answered within 2 hours
  • It will not work at all with 6 plates even if I use batteries?
    Ibrar A. - 3 days ago
    How many watt panels are you using ???
    Inverex Solar Energy (Karachi) - answered within 18 hours
  • Does this vm3 work without battery and how many solar plates needed?
    Muhammad I. - 3 days ago
    yes it can work without battery At least this inverter system required 4000 PV
    Inverex Solar Energy (Karachi) - answered within 10 hours
...
